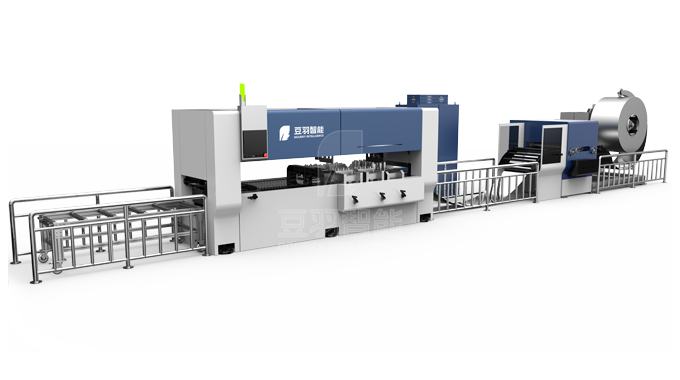

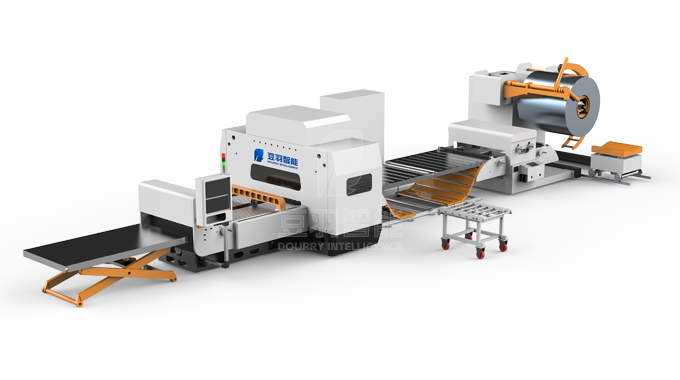

Fully Automatic Sheet Metal Flexible Punching And Shearing Production Line
Fully Automatic Sheet Metal Flexible Punching And Shearing Production Line is the latest integrated, automated and intelligent equipment for metal plate production and processing developed by Dourry Intelligence Equipment. It can achieve 20m/min, 300 times/min. From the perspective of the development of the entire sheet metal processing industry, intelligence, automation, and flexibility represent the trend and development direction of sheet metal processing technology, and have great influence in the fields of intelligent equipment and industry 4.0. important application prospects. This punching and shearing production line has a high degree of automation and a wide processing range, which can meet the needs of different customer groups. It is widely used in sheet metal parts processing, such as batch processing of steel furniture, steel cabinets, electrical cabinets and other sheet metal parts.

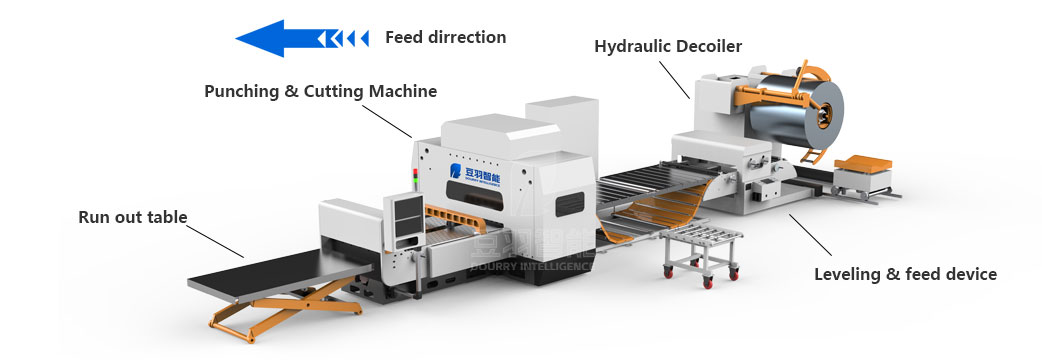

WORKING FLOW:
{{ flow }}
Characters
- {{ value }}
Heavy Duty Hydraulic Decoiler
- Applicable materials: cold rolled plate, standard plate, stainless steel
- Material width: 1250mm/1500mm
- Inner diameter of coil: φ480-530mm
- Coil outer diameter: φ1320 mm
High Precision Leveling Device
- It adopts 17 pieces rollers driven by servo motor and gear box.
- No. of rollers: 17 pieces 8 upper rollers and 9 down rollers
- Material of rollers: Alloy steel with quenched and tempered processing and hard chromium plating
- Leveling accuracy: ≤1.5mm/
Opeerating system
Cyp Cut controlling system is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphics processing, parameter setting, custom cutting process editing, layout, path planning, simulation, and cutting process control. CypCut can also be installed on a separate laptop for pre-processing design.
SPECIFICATION
| Model | DP 1250 | DP 1000 | DP 700 |
|---|---|---|---|
| Feeding length and method | 1250mm/Precision ball screw | 1000mm/Precision ball screw | 700mm/Precision ball screw |
| Molds/Dies | 4 sets of standard thick turret box molds 2 sets of high-performance standard mold bases | ||
| Number of hits | 300cp/min | 300cp/min | 300cp/min |
| Mold changing trolley | 2 | 2 | 2 |
| Number of servo axes | 8+1+2 | 9+1+2 | 9+1+2 |
| Strike power | Servo | Servo | Servo |
| Material rack leveling | 3 in 1 | 3 in 1 | 3 in 1 |
| Raw material width | 300-1250mm(Customized) | 300-1000mm(Customized) | 300-700mm(Customized) |
| Max. thickest of raw material | 2mm | 2mm | 2mm |
| Engineering punching force | 300kN | 300kN | 300kN |
| Weight | 26t | 20t | 18t |
| Power | 100kW | 55kW | 55kW |
| Maximum punching | 90*180mm | 90*180mm | 90*180mm |
| Number of modules | There are 32 B stations and 8 D stations, which can accommodate 4 large squares or 8 small squares. | ||
| Punching accuracy | ±0.1mm | ±0.1mm | ±0.1mm |
| Diagonal accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
