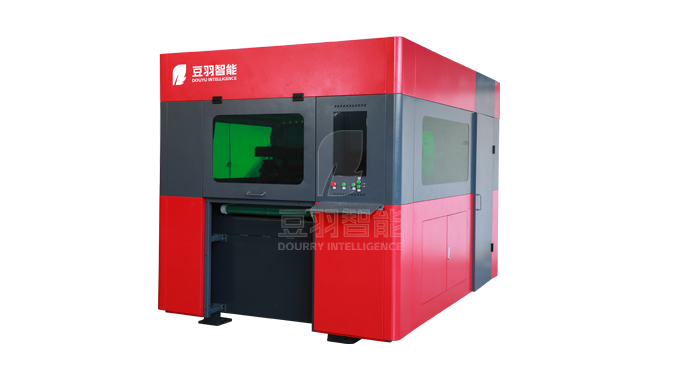

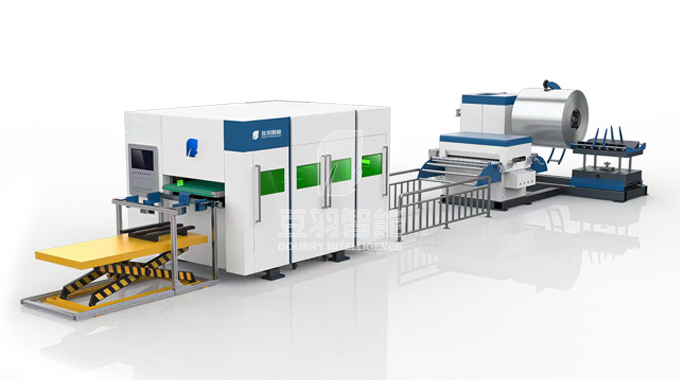

Fully Automatic Laser Cutting Production Line, Fiber Laser Cutters
The fully automatic laser blanking line with fiber laser cutters is an efficient blanking production line developed for the sheet metal industry. It is especially suitable for occasions with large batches, high quality, and continuous operations. When the three-in-one feeder is running, the entire feeding device is driven by the motor and roller through the servo control system, resulting in higher transmission accuracy and more stable feeding. The laser uses an advanced special laser generator, equipped with a customized cutting head and a high-speed servo drive control system. The cutting speed is 20% higher than other products with the same power, improving production efficiency. Innovative optimized design realizes high-power and low-energy consumption production mode, saving 15% of energy consumption compared with similar products, and achieving better cost savings.

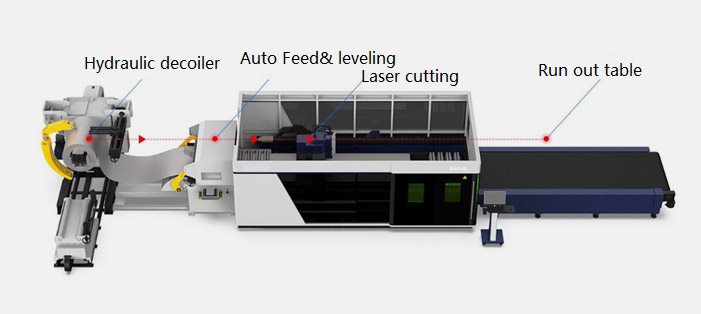

WORKING FLOW:
{{ flow }}
Characters
- {{ value }}
Heavy Duty Hydraulic Decoiler
- Applicable materials: cold rolled plate, standard plate, stainless steel
- Material width: 1250mm/1500mm
- Inner diameter of coil: φ480-530mm
- Coil outer diameter: φ1320 mm
High Precision Leveling Device
- It adopts 17 pieces rollers driven by servo motor and gear box.
- No. of rollers: 17 pieces 8 upper rollers and 9 down rollers
- Material of rollers: Alloy steel with quenched and tempered processing and hard chromium plating
- Leveling accuracy: ≤1.5mm/
Opeerating system
Cyp Cut controlling system is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphics processing, parameter setting, custom cutting process editing, layout, path planning, simulation, and cutting process control. CypCut can also be installed on a separate laptop for pre-processing design.
SPECIFICATION
| Machining area (L*W) | DC3015 | DC4020 |
|---|---|---|
| Machining area (L*W) | 3000mm×1500mm | 4000mm×2000mm |
| X-axis stroke | 3000mm | 4000mm |
| Y-axis stroke | 1500mm | 2000mm |
| Z-axis stroke | 200mm | 200mm |
| Positioning precision of X/Y axis | ±0.05mm/m | ±0.05mm/m |
| Repetitive positioning precision of X/Y axis | ±0.03mm | ±0.03mm |
| X/Y/Z axis Max. speed | 200m/min | 200m/min |
| Max. acceleration speed | 2.0g | 2.0g |
| Weight | 14t | 16t |
| Power | 35kW | 35kW |
| Equipment Covered Area | 14000*5250*2500 mm | 15000*6250*2500 mm |
| Rated power supply | 380V | 380V |
| Frequency | 50Hz | 50Hz |
| Applicable auxiliary gas | air, nitrogen, oxygen | air, nitrogen, oxygen |
Notice:
1. Any change technical data shall not be advised additionally.
APPLICABLE RAW MATERIALS
aluminum plate, carbon steel plate, stainless steel plate, galvanized plate, yellow copper plate
-
Aluminum plate
-
Carbon steel plate
-
Yellow copper
-
Stainless steel
Physical drawing
-
Aluminum Curtain Wall
-
Ceiling Making
-
Elevator Making
-
Fire-Proof Door
-
Electric Box
-
Kitchen Equipment Making
Apply to more areas
