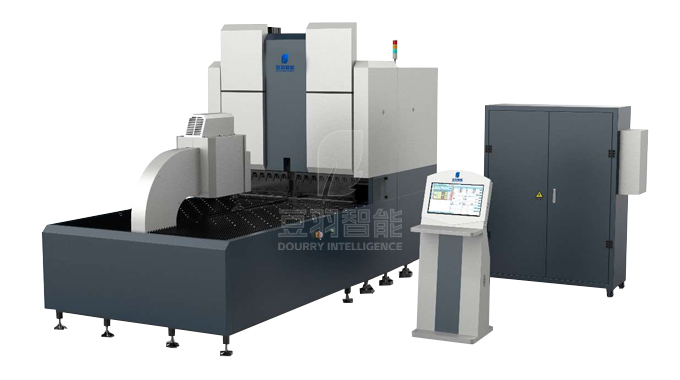

Fully Automatic Intelligence Metal Sheet Flexible Bending Center

The intelligent bending center is a high-efficiency automated machine tool composed of mechanical equipment and a CNC system used to perform complex bending and forming of multiple edges of thin plates. After the machine tool uses a universal universal mold to clamp the thin plate, it uses the movement of the bending knife to achieve right angle bending, arc bending and other processes. With automatic feeding and workpiece rotation, it can automatically complete multiple sheet metal processes in one clamping.

WORKING FLOW:

{{ flow }}

Characters

  • {{ value }}

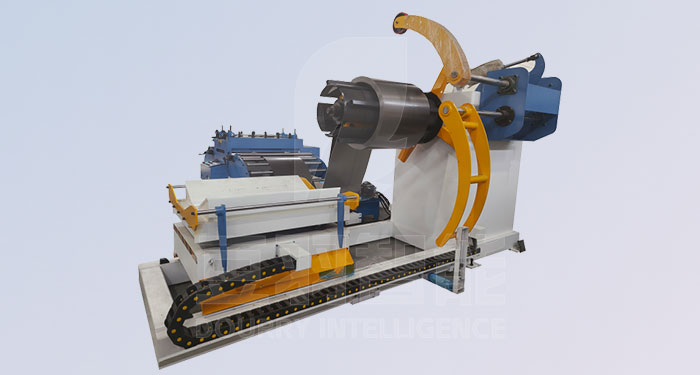

Heavy Duty Hydraulic Decoiler

  • Applicable materials: cold rolled plate, standard plate, stainless steel
  • Material width: 1250mm/1500mm
  • Inner diameter of coil: φ480-530mm
  • Coil outer diameter: φ1320 mm

High Precision Leveling Device

  • It adopts 17 pieces rollers driven by servo motor and gear box.
  • No. of rollers: 17 pieces 8 upper rollers and 9 down rollers
  • Material of rollers: Alloy steel with quenched and tempered processing and hard chromium plating
  • Leveling accuracy: ≤1.5mm/

Opeerating system

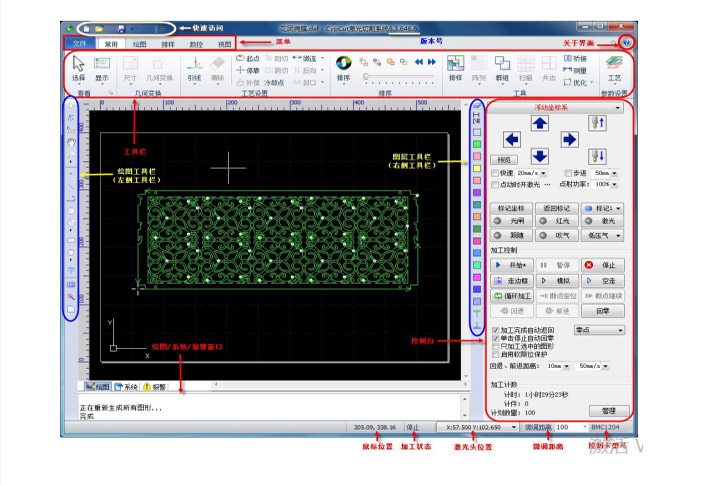

Cyp Cut controlling system is a set of software for plane laser cutting, including laser cutting process processing, common layout functions and laser processing control. The main functions include graphics processing, parameter setting, custom cutting process editing, layout, path planning, simulation, and cutting process control. CypCut can also be installed on a separate laptop for pre-processing design.

SPECIFICATION

ModelDB1500DB2200DB2500DB3000
Materialleneth (min to max.)200-1500mm200-2200mm200-2500mm200-3000mm
Material width (min.to max.)200-1000mm200-1000mm200-1500mm200-1500mm
Maximum diagonal size1650mm2350mm2650mm3250mm
Maximum bendingheight170mm170mm170mm170mm
Maximum bending speed(s/knife)0.3s/c0.3s/c0.3s/c0.3s/c
Number of axes14142121
Work surfaceheight850mm850mm850mm850mm
Folding angle range-135-135°-135-135°-135-135°-135-135°
Conventional bending plate thicknessCold plate 410N/mm²0.5-1.5mm0.5-1.5mm0.5-2.0mm0.5-2.0mm
304 stainless steel 660 N/mm0.5-0.8mm0.5-0.8mm0.5-1.2mm0.5-1.2mm
201 stainless steel 1000 N/mm0.5-0.8mm0.5-0.8mm0.5-1.2mm0.5-1.2mm
aluminum plste 260 N/mm0.5-2.0mm0.5-2.0mm0.5-2.5mm0.5-2.5mm
Minimum height of bendingplate5 times the plate thickness
Power supply capacity, three-phase four wire 380v70kVA70kVA70kVA70kVA
Air pressure≥0.6MPa
Wachine Dimensions3070*4250*2200mm3700*5000*2200mm3800*5000*2200mm4500*5000*2200mm
Machine weight11t15t20t24t

Notice:

1. Any change technical data shall not be advised additionally.

APPLICABLE RAW MATERIALS

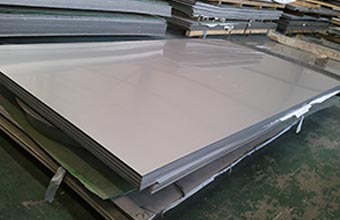

aluminum plate, carbon steel plate, stainless steel plate, galvanized plate, yellow copper plate

  • Aluminum plate

  • Carbon steel plate

  • Yellow copper

  • Stainless steel

Physical drawing

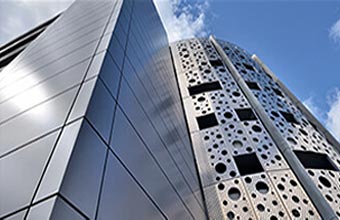

  • Aluminum Curtain Wall

  • Ceiling Making

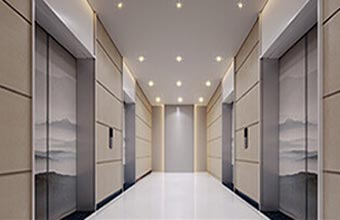

  • Elevator Making

  • Fire-Proof Door

  • Electric Box

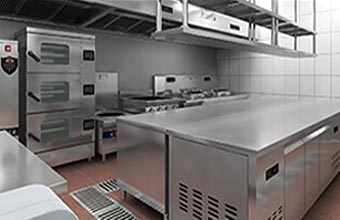

  • Kitchen Equipment Making

Apply to more areas
